PL Lamp

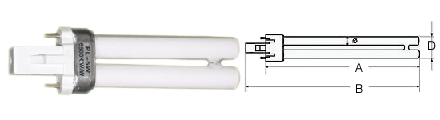

PLS
Watts
(W)		 Current
(A)		 Voltage
(V)		 Lumen
(Lm)

CRI
(Ra)

 CCT
(K)		 Life
(Hr)		 Socket
(2PIN/4PIN)
5 0.18 35 240 ≧80 2700~6500 10000 G23/2G7
7 0.175 45 370 ≧80 2700~6500 10000 G23/2G7
9 0.17 60 540 ≧80 2700~6500 10000 G23/2G7
11 0.155 90 660 ≧80 2700~6500 10000 G23/2G7
13 0.285 59 780 ≧80 2700~6500 10000 GX23/2G7

Watts
(W)
 A
(mm) 		B
(mm)

D
(mm)

 Ø
(mm)

Carton
(cm)

PCs

N.W.
(Kg) 		G.W.
(Kg)
5 86 107 28 12.5 39×24.7×14.5 100 3.5 4.0
7 113 135 28 12.5 39×24.7×17.5 100 4.2 4.7
9 145 167 28 12.5 39×24.7×20.5 100 4.3 4.8
11 214 237 28 12.5 39×24.7×21.5 100 5 5.5
13 154 175 28 12.5 39×24.7×21.5 100 4.5 5

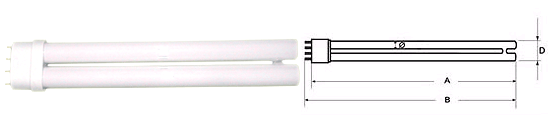

PLL
Watts
(W)		 Current
(A) 		Voltage
(V)		 Lumen
(Lm)

CRI
(Ra)

 CCT
(K)		 Life
(Hr)		 Socket
18 0.375 58 1160 ≧80 2700~6500 10000 2G11
24 0.345 87 1620 ≧80 2700~6500 10000 2G11
27 0.610 57 1610 ≧80 2700~6500 10000 2G11
36 0.435 106 2760 ≧80 2700~6500 10000 2G11
55 0.670 110 4800 ≧80 2700~6500 10000 2G11

Watts
(W)
 A
(mm) 		B
(mm)

D
(mm)

 Ø
(mm)

Carton
(cm)

PCs

N.W.
(Kg) 		G.W.
(Kg)
18 220 227 38 18   100
24 315 322 38 18   100
27 245 252 38 18   100
36 410 417 38 18   100
55 535 542 38 18   100

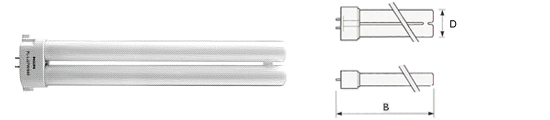

FPL
Watts
(W)		 Current
(A) 		Voltage
(V)		 Lumen
(Lm)

CRI
(Ra)

 CCT
(K)		 Life
(Hr)		 Socket
18 0.375 57 1070 ≧80 2700~6500 10000 GY10Q-3
27 0.610 57 1610 ≧80 2700~6500 10000 GT10Q-4

Watts
(W)
 A
(mm) 		B
(mm)

D
(mm)

 Ø
(mm)

Carton
(cm)

PCs

N.W.
(Kg) 		G.W.
(Kg)
18 215 225 42 20   100
27 240 250 42 20   100

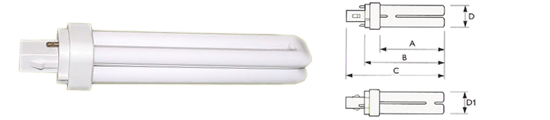

PLC
Watts
(W)		 Current
(A) 		Voltage
(V)		 Lumen
(Lm)

CRI
(Ra)

 CCT
(K)		 Life
(Hr)		 Socket
(2PIN/4PIN)
13 0.285 59 800 ≧80 2700~6500 10000 G24d-1/G24q-1
18 0.220 100 1080 ≧80 2700~6500 10000 G24d-2/G24q-2
26 0.315 105 1580 ≧80 2700~6500 10000 G24d-3/G24q-3

Watts
(W)
 A
(mm) 		B
(mm)		 C
(mm)

D
(mm)

 Ø
(mm)

Carton
(cm)

PCs

N.W.
(Kg) 		G.W.
(Kg)
13 98 115 138/131 28 12.5   100
18 110 130 153/146 28 12.5   100
26 131 149 172/165 28 12.5   100

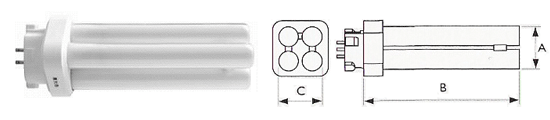

FDL(BB)
Watts
(W)		 Current
(A) 		Voltage
(V)		 Lumen
(Lm)

CRI
(Ra)

 CCT
(K)		 Life
(Hr)		 Socket
13 0.30 54 760 ≧80 2700~6500 10000 GX10q-2
18 0.375 55 1010 ≧80 2700~6500 10000 GX10q-3
27 0.610 56 1470 ≧80 2700~6500 10000 GX10q-4

Watts
(W)
 A
(mm) 		B
(mm)

C
(mm)

 Ø
(mm)

Carton
(cm)

PCs

N.W.
(Kg) 		G.W.
(Kg)
13 28 117 28 16.5   100
18 28 127 28 16.5   100
26 28 141 28 16.5   100

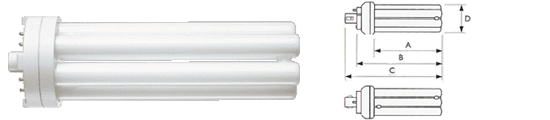

PLT
Watts
(W)		 Current
(A) 		Voltage
(V)		 Lumen
(Lm)

CRI
(Ra)

 CCT
(K)		 Life
(Hr)		 Socket
(2PIN/4PIN)
13 0.175 91 810 ≧80 2700~6500 10000 GX24d-1/GX24q-1
18 0.220 100 1200 ≧80 2700~6500 10000 GX24d-2/GX24q-2
26 0.315 105 1900 ≧80 2700~6500 10000 GX24d-1/GX24q-3
32 0.320 101 2400 ≧80 2700~6500 10000 GX24d-3/GX24q-3
42 0.320 135 2700 ≧80 2700~6500 10000 GX24d-5/Gx24q-4
57 0.320 175 3700 ≧80 2700~6500 10000 GX24d-4/GX24q-5

Watts
(W)
 A
(mm) 		C
(mm)

D
(mm)

 Ø
(mm)

Carton
(cm)

PCs

N.W.
(Kg) 		G.W.
(Kg)
13 67 106 41 12.5   100
18 72 116 41 12.5   100
26 87 131 41 12.5   100
32 99 147 41 12.5   100
42 107 168 41 12.5   100
57 157 195 41 12.5   100

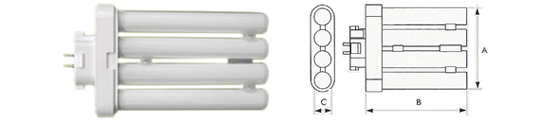

FML
Watts
(W)		 Current
(A) 		Voltage
(V)		 Lumen
(Lm)

CRI
(Ra)

 CCT
(K)		 Life
(Hr)		 Socket
18 0.375 54 1050 ≧80 2700~6500 ≧8000 GX10q-3
27 0.610 54 1500 ≧80 2700~6500 ≧8000 GX10q-4
36 0.435 105 2760 ≧80 2700~6500 ≧8000 GX10q-6

Watts
(W)
 A
(mm) 		B
(mm)

C
(mm)

 Ø
(mm)

Carton
(cm)

PCs

N.W.
(Kg) 		G.W.
(Kg)
18 81 129 18.5 16.5   100
27 81 143 18.5 16.5   100
36 81 245 18.5 16.5   100

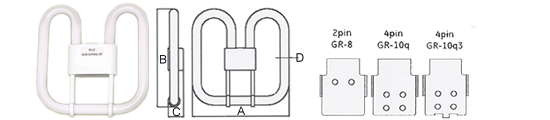

PLQ(2D)
Watts
(W)		 Current
(A) 		Voltage
(V)		 Lumen
(Lm)

CRI
(Ra)

 CCT
(K)		 Life
(Hr)		 Socket
10 0.18 72 1050 ≧80 2700~6500 ≧8000 GX10q-3
16 0.20 103 1500 ≧80 2700~6500 ≧8000 GX10q-4
21 0.26 102 1270 ≧80 2700~6500 ≧8000 GR8
28 0.26 101 1900 ≧80 2700~6500 ≧8000 GR10
38 0.43 105 2600 ≧80 2700~6500 ≧8000 GR10

Watts
(W)
 A
(mm) 		B
(mm)

C
(mm)

 Ø
(mm)

Carton
(cm)

PCs

N.W.
(Kg) 		G.W.
(Kg)
10 92 94 33 12.5   50
16 138 141 27.2 13   50
21 138 141 27.2 13   50
28 202 204 28.6 19   50
38 202 204 28.6 19   50
